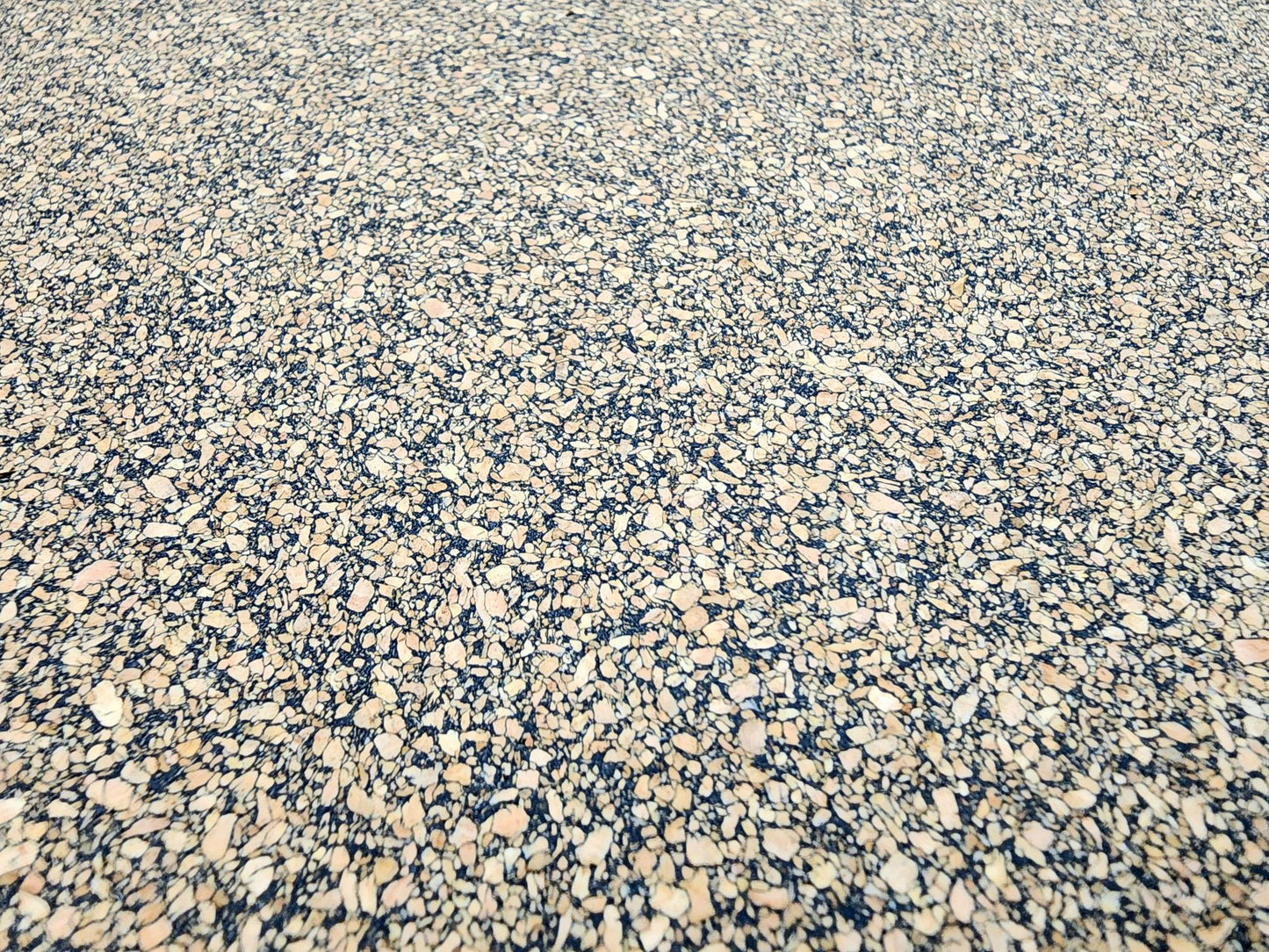

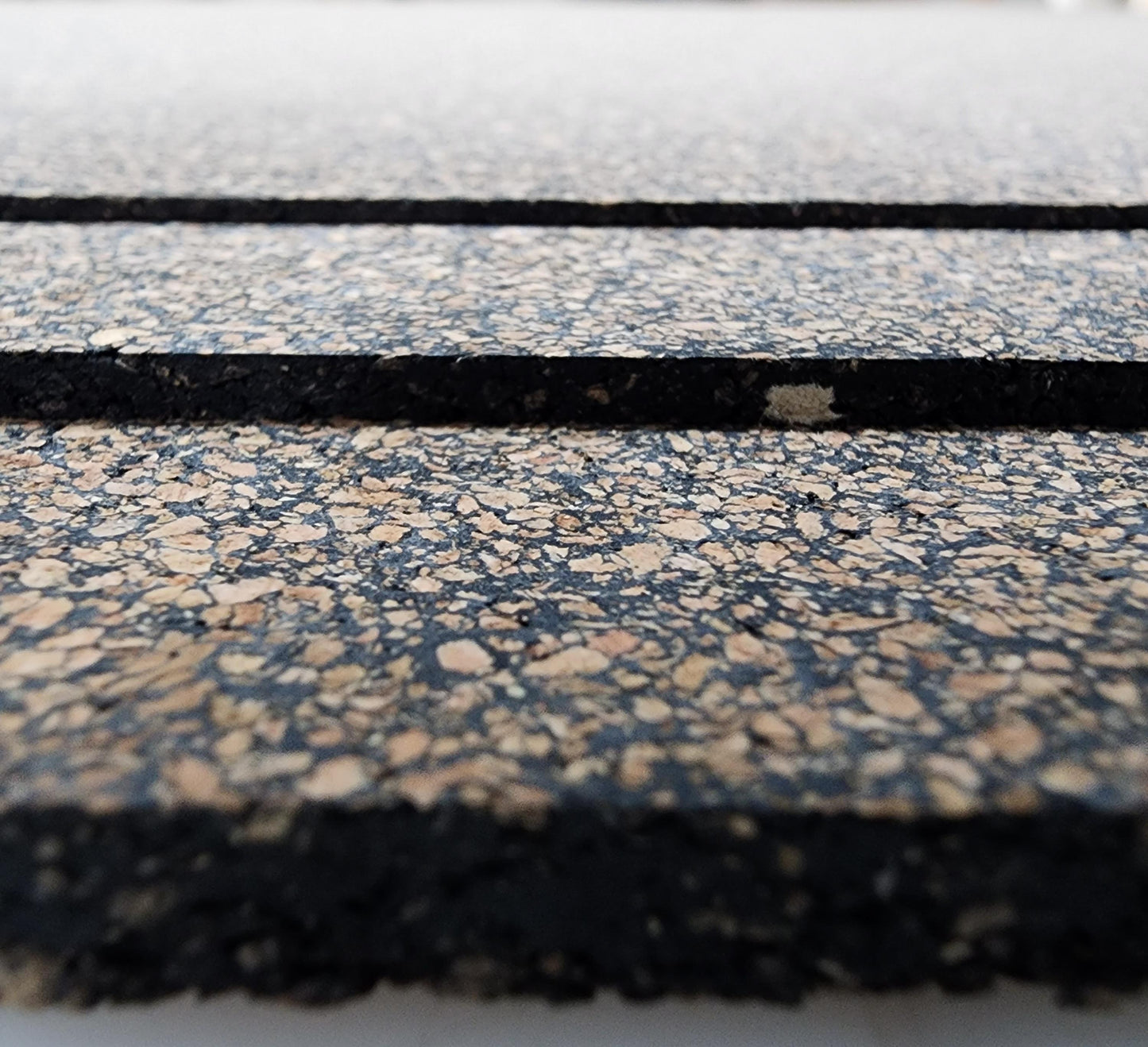

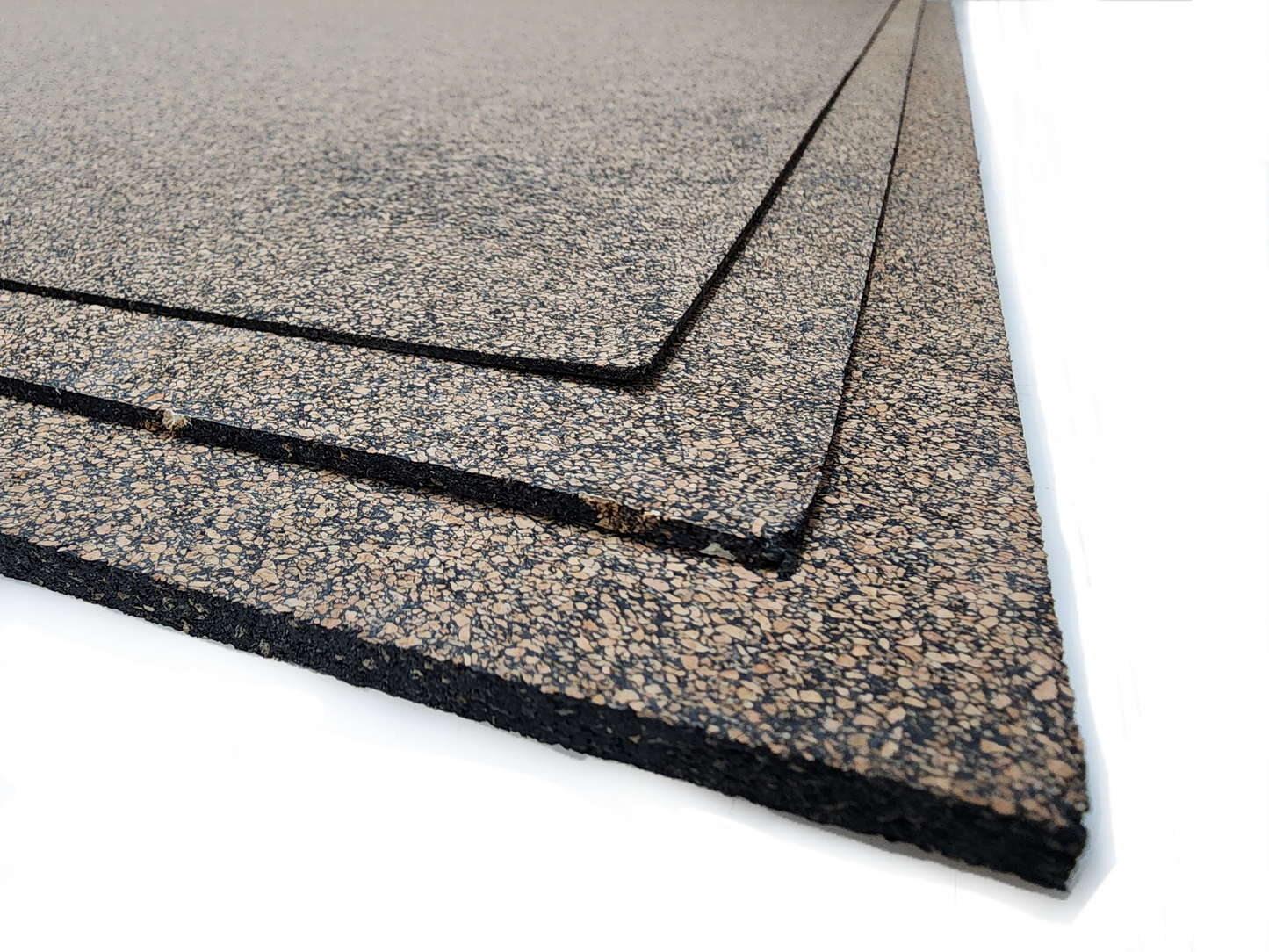

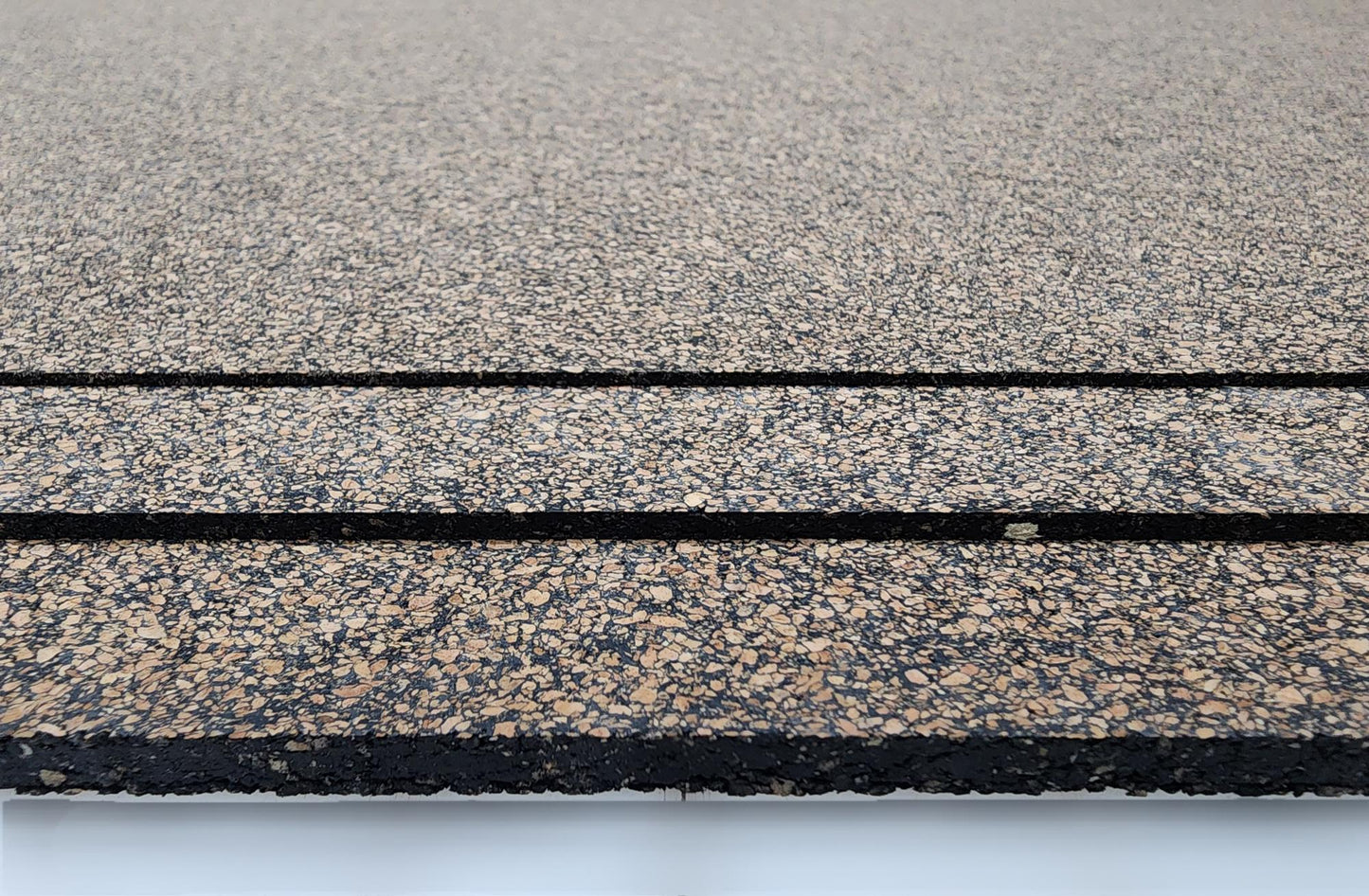

Cork & Nitrile Sheet

Cork & Nitrile Sheet

Regular price $40.39 CAD
Regular price Sale price $40.39 CAD
Sale Sold out
Shipping calculated at checkout.
Thickness

This cork and nitrile rubber blend combines the compressibility of cork with the flexibility of rubber. HC60 performs well in torque or bolt-pressure flange gaskets, particularly in low-pressure situations. It has good oil and solvent resistance and is typically used for transformers, vehicle oil seals, gearbox seals, cover gaskets, and fluid seals.

Code: HC60

Sheet Size: 36" x 36"

Available thickness: 1/16", 1/8", 3/16", 1/4"

Binder: Nitrile Rubber

Color: Mix

Density: 640-880 kg/m 3

Tensile Strength: 1.72 MPa

Compressibility: 25-40%

Recovery @ 400 PSI: 80%

Cork Granule Size: 1-2mm

Hardness: 60-80 Shore A

Flexibility:
Original (F=5)- No cracks
Oven aged, 70h at 100°C (F=16)-No cracks
ASTM N°1 Oil, 70h at 100°C (F=16)-No cracks

Volume change after immersion:
ASTM N°1 Oil, 70h at 100°C-->-5% to +10%
IRM 903 Oil, 70h at 100°C---->-2% to +15%
Fuel A, 22h at RT-------------->-2% to +10%

Thickness Change after immersion:
ASTM N°1 Oil, 70h at 100°C-->-5% to +10%
IRM 903 Oil, 70h at 100°C----> 0% to +15%
Fuel A, 22h at RT--------------> 0% to +10%
         Oven aged, 24h 100°C--> -5% to +5%
Fuel B, 22h at RT--------------> 0% to +15%
         Oven aged, 24h 100°C--> -5% to +5%

Compression Set: Method A, 22h at 70°C (max)- 40%
