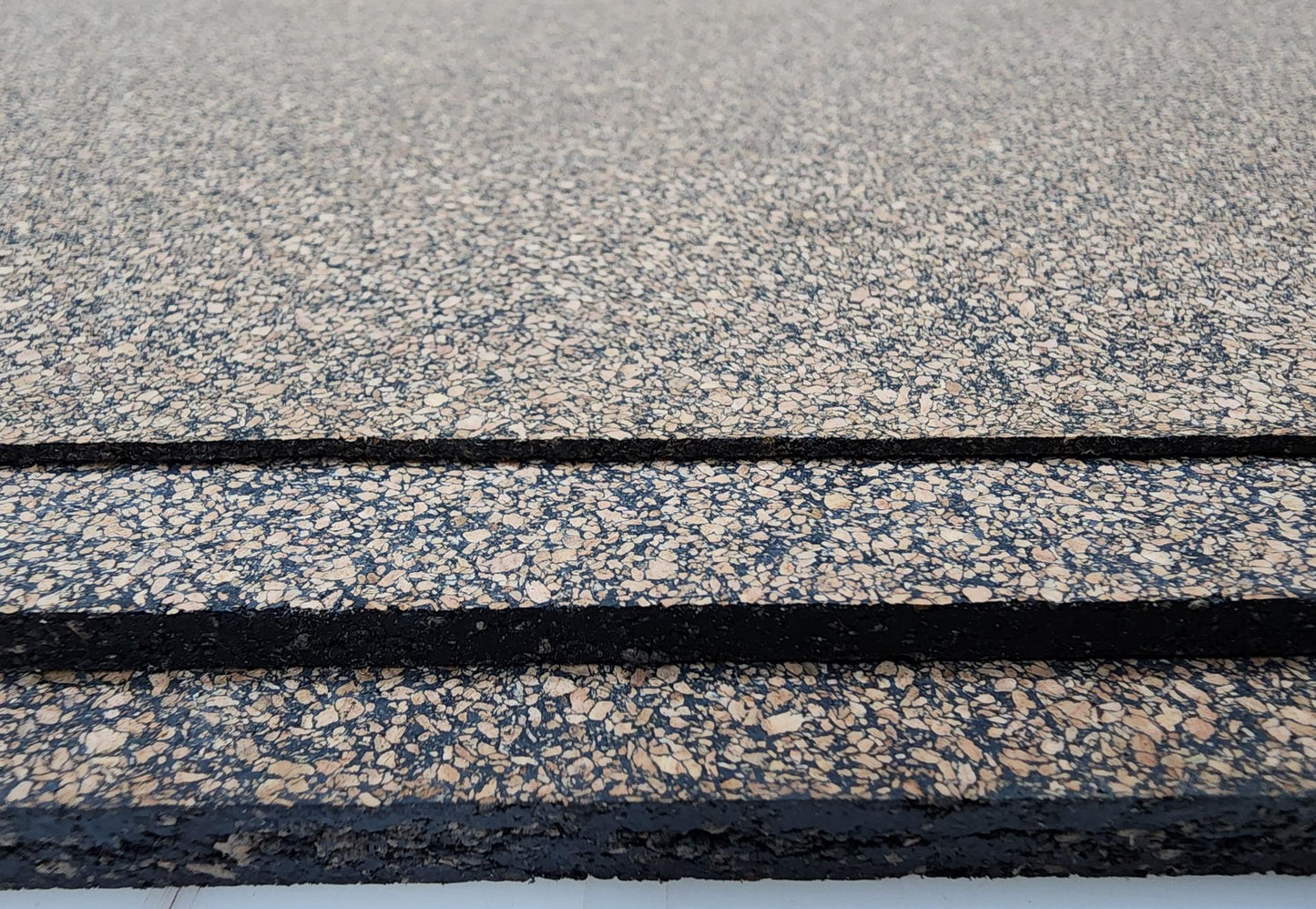

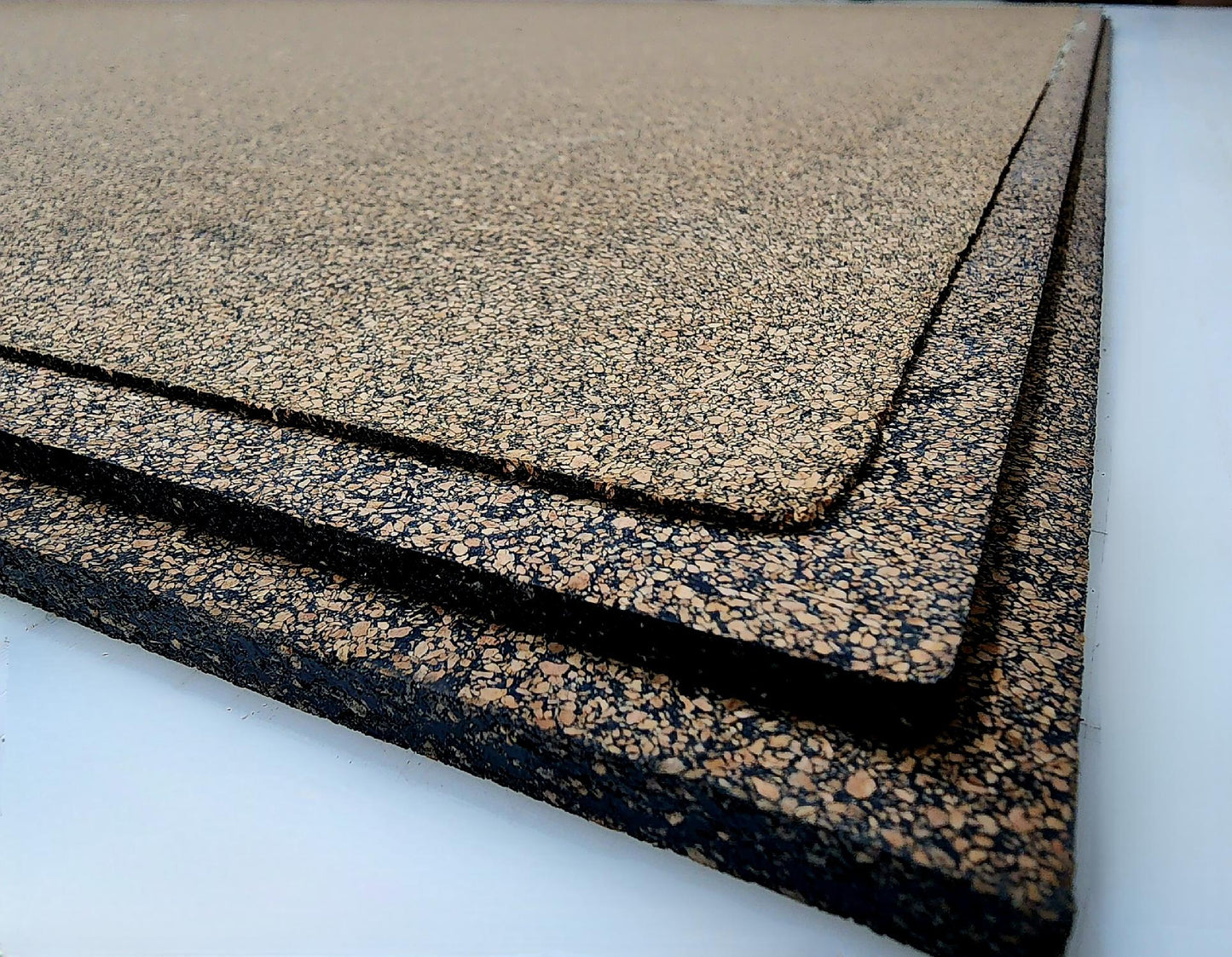

This cork & neoprene blend material is very resilient, has good oil resistance, and is excellent for use with water. Being a highly compressible material, it is ideal for many applications, including air and refrigeration compressors. NCA45 seals well at low bolt torque, and flange pressures, and at temperatures up to 248°f (120°C). The small granule size gives the material a visually pleasing pattern making it a great choice for decorative areas as well.
Code: NCA45

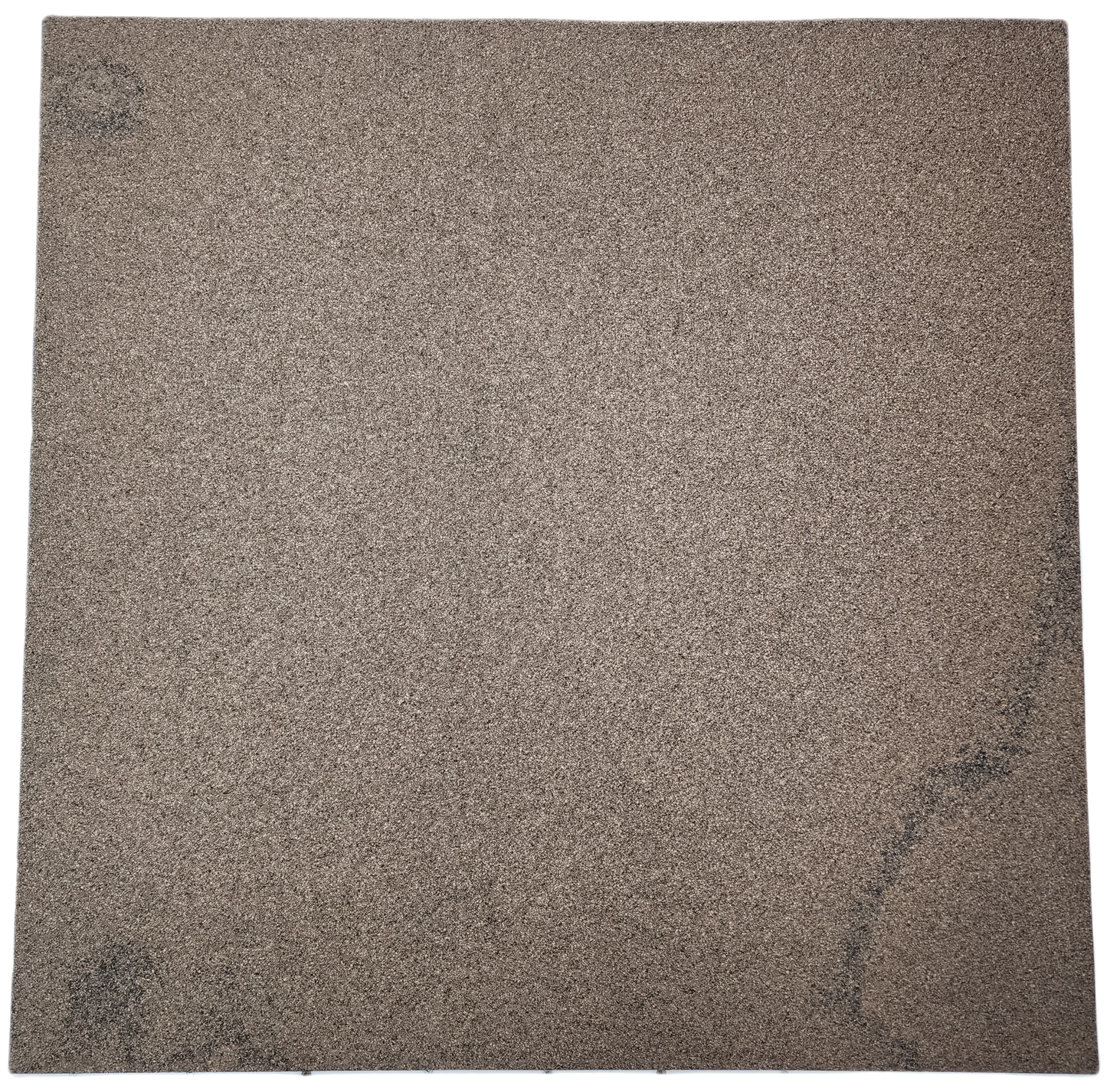

Sheet Size: 36" x 36"
Available thickness: 1/16", 1/8", 3/16", 1/4"
Binder: Neoprene Rubber
Color: Mix
Density: 560-760 kg/m3
Tensile Strength: 0.96 MPa
Compressibility: 35-50%
Recovery @ 400 PSI: 80%

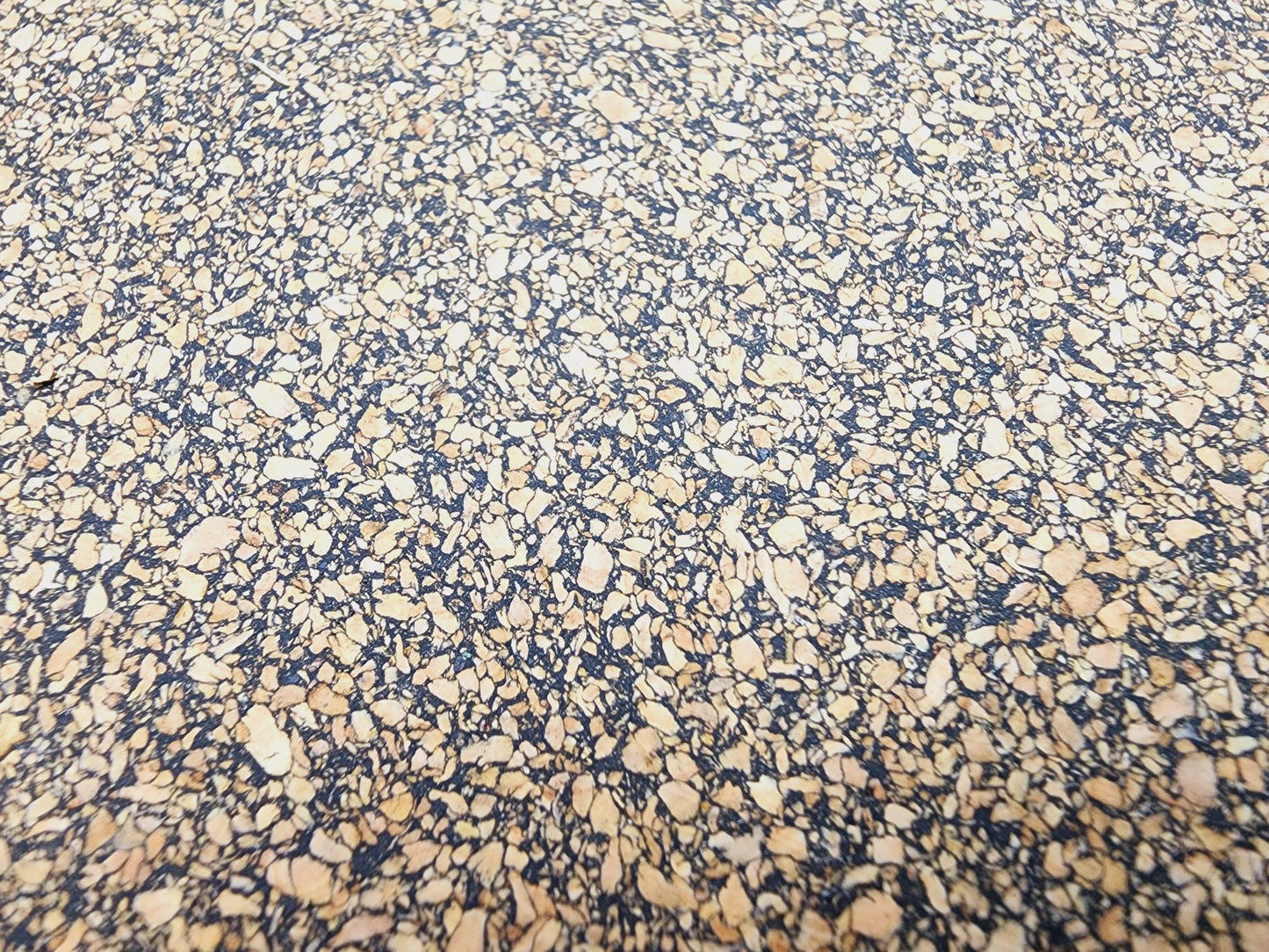

Cork Granule Size: 1-2mm
Hardness: 50-70 Shore A
Flexibility: Original (F=5)- No cracks Oven aged, 70h at 100°C (F=16)-No cracks ASTM N°1 Oil, 70h at 100°C (F=16)-No cracks
Volume change after immersion: ASTM N°1 Oil, 70h at 100°C-->-10% to +10% IRM 903 Oil, 70h at 100°C---->+10% to +40% ASTM Fuel A, 22h at RT------>+ 0% to +15%
Thickness Change: IRM 903 Oil, 70h at 100°C--2% to +15%
